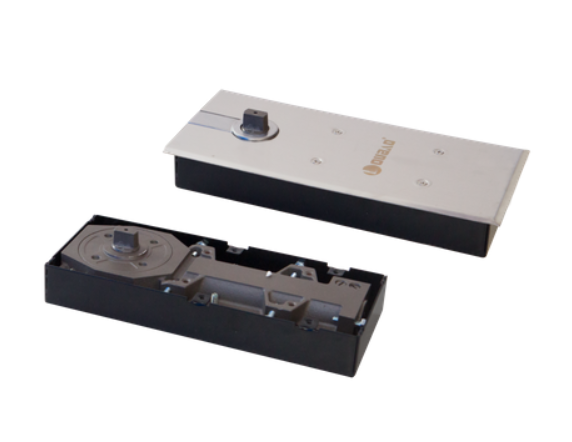

model: FR50A Floor Spring from OUbao
model: FR50A
Brand oubao
Product Description
The product features consummate craftsmanship and superior functions, suitable for common and toughened glass door wooden door and aluminum alloy door in hotel, store and office building. SUGGESTIONS ON FLOOR HINGE SELECTION
A. Selection of different models of floor HINGE is mainly based on glass door weight
B. Calculation of glass weight according to national standard,lmm thick common and toughened glass s 2.5kg per square meter. As to 12mm thick23m high and lmwide glass door commonly used in the country at present, the weight shall be
2.3x1x12x2.5=69kg.
C. The weight of the entire door can be got by adding up the weight of all accessories and the weight of glass.
D. If heavy-duty floor HINGE is chosen for a light-weight glass doo, the cost will increase ,and you cannot obtain good opening effect because it is heavy-duty
E. If floor HINGE with inadequate weight bearing is chosen to reduce project costs ,t will directly influence service life of floor HINGE.
F. For an outside door taking wind power into consideration ,twin-cylinder floor HINGE should be chosen regardless of door sizes.
G. In cold area floor HINGE with anti-freeze hydraulic oil injected should be chosen ,so as to prevent malfunction of flooi HINGE at a very low temperature
朱婷TingEllen:
TECHNICAL INFORMATION & FUNCTION
Suit for Door Weight Max 80-100kg
suit for Door Width 900-1000mm
Cement box dimension 276*108*40mm
Hold open & Max Open 90ᵒin both direction open. Max open: 130°
Closing and Latching angle Closing: 900-20°, Latching:200-0°
Closing speed adjustable Yes. Two-stage speed adjustable
Door Install adjust range 士5mm adjustable, front & back, up& down
Suitable Temperature -35C To 45°C
Applicability Can be used for left and right-hand doors
Various Finish SILVER, GOLD,BROWN 8014, WHITE 9016, BRONZE 8080,BEIGE 1015, CHOCKLET 1019,BLACK 9005 ,other color upon request

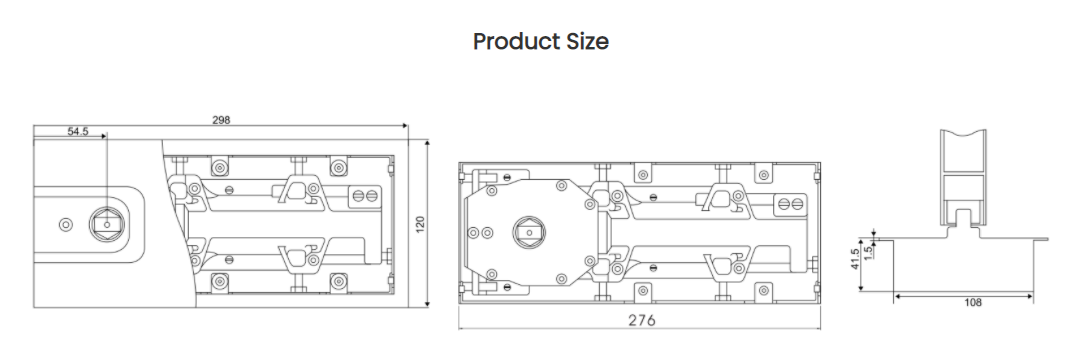

Dimension of Main Body Length 298
Width 120
Height 41.5
Weight (kg) 4.3kg
Passed Durability Test 500,000 cycles
