Smart Lock LVD-06 Product Description and parameter and Function

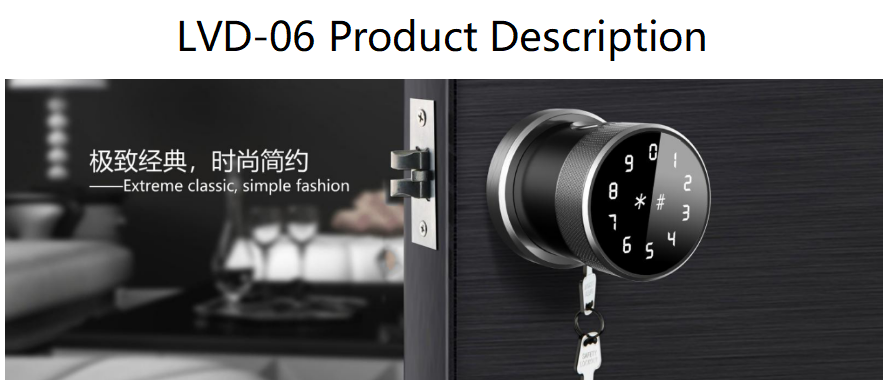

LVD-06 Product Description
PARAMETERS
Materials
High Density Aluminium Alloy
Surface Treatment
Anodization
Fingerprint Reader
Living fingerprint recognition，0.5 second speed recognition
Administrator Capacity
100 PCS
User Capacity
100 PCS
Fingerprint Capacity
50 PCS
Password Capacity
20PCS
IC Card Capacity
50 PCS
APP
TUYA APP (Bluetooth)
Unlock Mode
Fingerprint（optional）, Password, IC Card, Bluetooth, Keys
Fingerprint Resolution
500 DPI
False Rejection Rate
（FRR）<0.1%
False Accept Rate
（FRA）<0.001%
Power Supply
4 PCS AA Battery
Backup Power
USB Interface
Battery Life
1 year
Work Temperature
-25~65℃
Working Relative Humidity
20%RG-90%RH
Door Thickness
35mm--65mm
Lock Body
Single-Latch,and suitable for the lock body which's backset is bigger than 45mm

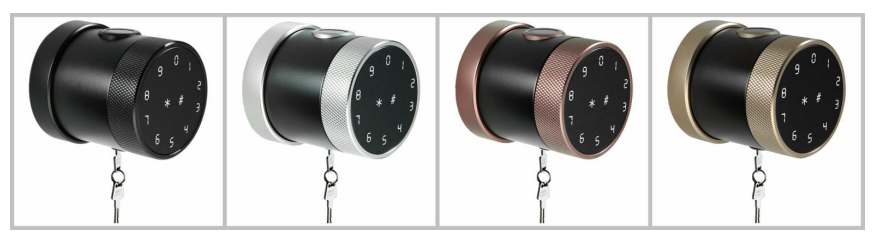

Color
Black, Silver, Gold, Brown
PRODUCT FEATURES
1.Swedish FPC sensor, 0.5 second speed recognition
2.Intelligent alarm function and password protection function, when the wrong password is entered for 5 times continuously, the system will lock for 180 seconds, and sound and light alarm
3.Multiple unlock mode: Fingerprint, Password ,IC card, Keys, Bluetooth
4.Scramble code function: the valid password is 6 to 8 digits, which supports front and back dummy password to prevent from peeking
5.Fingerprint function: Intelligent touch screen technology without fingerprints, Swedish FPC semiconductor military-grade collector, living fingerprint recognition
6.Temporary password function: the mobile APP generates a remote password for the guest to unlock the door
7.Passage Mode: when you need to open/close the doors frequently, you can turn this mode on
8.Access records query: You can check access records at anytime by App
9. TUYA APP supports multiple languages
10.Low battery consumption，4 AA batteries are durable for over 1 years
11..Low battery alarm, when the voltage is lower than 4.8V, the alarm is activated each time with the unlock
12.App Apartment management system: You can manage all locks of the whole apartments
13.USB emergency interface, you can charge it to unlock door when the battery run out.
FUNCTIONS
1.Passage Mode: When you need to open/close the doors frequently, you can turn this mode on, and then everyone can unlock the door without any fingerprint, IC card, password or Bluetooth.
2.Secure Lock Mode: Except for APP, all users' fingerprints, password and IC cards can not unlock the door.
3.Member Management: There are two types of members, Family members and Other members. Different permissions can be set according to different members.
4.Generate Password : the administrator can generate a password on the App with 2 modes for your choice, including permanent, timed and one-time.
5.Access Records Query: You can check all the access records at anytime.
6.Apartment Management: this app can send the temporary passcode directly, check in and check out, check the tenant list, check the access records, add the list of branches, and pay the rent and utility fees.The landlord can send the rent bill to the tenant by TT Renting App. The bill can include: rent, water and electricity, gas, property and so on. This App provides a all-feaured mobile management function for apartment and tenement.
