AUOTOMATIC LOCK CYLINDER ASSEMBLY MACHINE

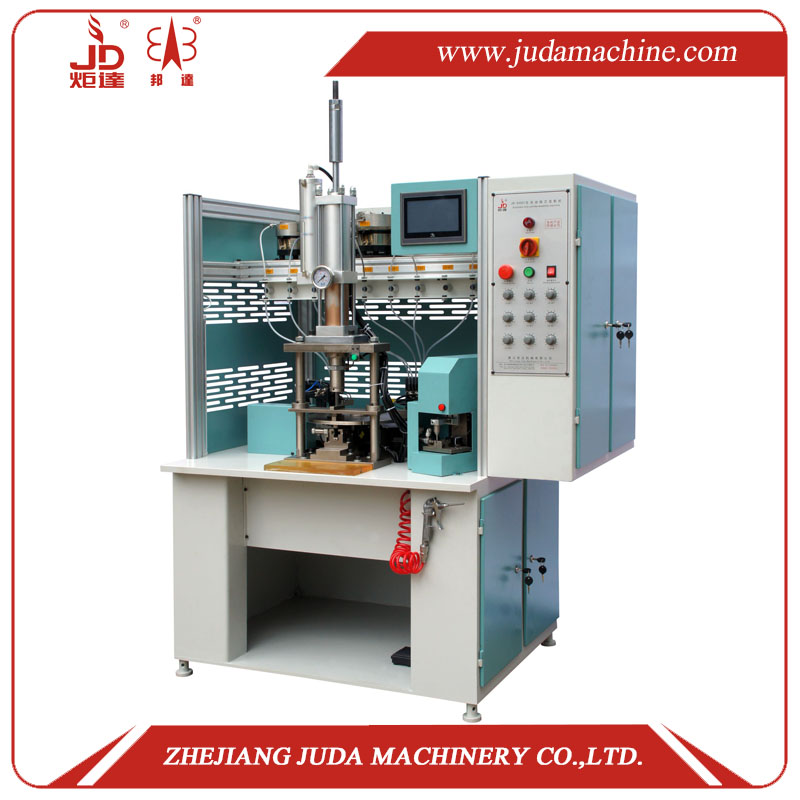

JD-SX601 AUOTOMATIC LOCK CYLINDER ASSEMBLY MACHINE
PROPERTIES
Adopt touch screen and PLC control system, servo motor, the original
pneumatic actuators, equipped with a large number of high precision
detecting at the same time, ensure high efficiency, high precision, low
fault characteristics.
CHARACTERS
Automatically detects the key bit data, unqualified bit automatic alarm to remind,
automatically delete unqualified bit data.
Detection precision of key bit range 0-0.5 mm, can be arbitrarily setted. no blanking
automatically alarm to remind.
Automatically distributes of pins, drivers, springs and filling plates, detect starving
will be in standby function.
Equipped with six differential pins device, reduce the mutual locks in the same batch.
Automatic detection device lock body in place and clamp lock function, make the
pressure more stable precision.
With high precision servo motor, high precision guide rail and ball screw, running
accuracy in +/- 0.03mm,one-time pressing forming accurate and efficient.
Display shows system failure, the operator malfunction easily, save time and effort.
PARAMETER
Lock body length: 60-130mm（includes handle）
Machine efficiency: 240pcs/hour (single row double bolt lock)
Display functions: adjustable data, system fault prompt
Operation accuracy: ±0.03mm
Rated pressure: 0.6Mpa
Power supply: 220V±10%
Power: 1.6kw
Machine dimension: 1260×850×1800mm
Machine weight: 550kgs
